As an important part of the field of electronic components, solid state relays (SSR) play an indispensable role in modern automation control systems with their unique performance characteristics. This article aims to provide an in-depth analysis of the advantages and disadvantages of solid-state relays and provide corresponding application suggestions based on their characteristics to help engineers and technicians better understand and use this key component.

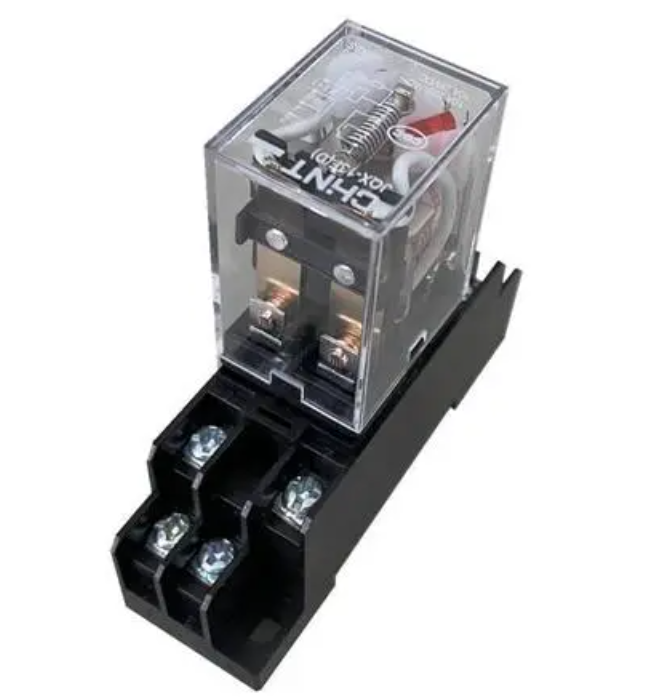

Analysis of the advantages of solid state relays
Long life and high reliability
One of the greatest advantages of solid state relays is their long life and reliability. Unlike traditional mechanical relays, SSR has no mechanical moving parts and its switching function is completely implemented by solid-state devices. This means that SSR can maintain stable operation in extreme working environments, such as high shock and high vibration conditions. The lifespan and reliability of solid-state relays are due to the inherent characteristics of their internal semiconductor devices. These characteristics ensure that under normal use conditions, the SSR can withstand long-term continuous operation and is almost unaffected by wear.
High sensitivity, low control power and good electromagnetic compatibility
Another significant advantage of solid-state relays is their high sensitivity and low control power requirements. The SSR's wide input voltage range and low drive power make it directly compatible with most logic integrated circuits without the need for additional buffers or drivers. This feature greatly simplifies the design of the control system and reduces system complexity and cost. In addition, SSR has excellent electromagnetic compatibility. Since it has no input coil, no contact arcing and rebound phenomena, it performs well in reducing electromagnetic interference.
Fast response and reduced electromagnetic interference
The fast response of solid state relays is another outstanding advantage. Since SSR uses solid-state devices for switching control, its switching speed can reach a range of several milliseconds to several microseconds, which is much faster than traditional mechanical relays. This makes SSR particularly suitable for application scenarios that require fast switching. At the same time, the SSR uses zero-voltage switching technology in its design, which can turn on when the voltage crosses zero and turn off when the current crosses zero. This design reduces the mutation of the current waveform, thereby significantly reducing the switching transient effect and further reducing the electromagnetic interference.
Application challenges and solutions for solid state relays
Although solid-state relays have many advantages, they still face some challenges in practical applications. These challenges mainly include large voltage drop after turn-on, leakage current, large power consumption and heat generation, poor anti-interference ability and radiation resistance, and Sensitivity to overload, etc.
On-voltage drop and leakage current issues
The voltage drop of a solid-state relay in the conductive state is relatively large, especially when using a thyristor or a triac, the forward voltage drop can reach 1 to 2V. In addition, even in the off state, semiconductor devices may have small leakage currents. Although these leakage currents are small, they may have an impact on some precision control applications. To solve these problems, the design can be optimized by selecting high-performance semiconductor devices with low on-voltage drop and low leakage current characteristics. At the same time, appropriate heat dissipation measures should be considered in the application to keep the temperature of the solid-state relay within a safe range.
Power consumption, heat generation and anti-interference issues
The power consumption and heat generation problems of solid-state relays mainly originate from the voltage drop of its internal semiconductor devices in the conductive state. This not only increases the energy consumption of the system, but may also cause the device to overheat, affecting its stability and life. The key to solving this problem is to use effective cooling techniques, such as the use of heat sinks, fans or liquid cooling systems, to ensure that the solid state relays operate at optimal operating temperatures. In addition, the electronic circuits of solid-state relays have poor anti-interference and radiation resistance, which requires these factors to be taken into consideration during the design stage and measures such as shielding, grounding and filtering to improve the overall anti-interference performance of the system.
