The world of resistors is a labyrinth of types, each with distinct characteristics and applications. Ranging from synthetic carbon film to specialized sensors, these components are the unsung heroes in the electronic domain.
Starting with synthetic carbon film resistors (RH), we encounter a broad resistance spectrum from 10 to 10,000,000m. These are economical choices, with a maximum working voltage of 35kv. However, they falter in humidity resistance, have noticeable noise, and exhibit poor frequency characteristics and voltage stability. Mainly, they're crafted into high-voltage Gaozu resistors and are often encapsulated in glass shells, forming vacuum megohm resistors ideal for micro-current testing and atomic detection instruments.
Glass glaze resistors (RI) stand out with their high-temperature endurance and broad resistance range. They boast a small temperature coefficient and impressive moisture resistance, with a maximum working voltage of 15kv. Also known as thick film resistors, they operate well in temperatures ranging from -55 to 125°C, with a small temperature coefficient of less than 10(-4)/°C. These are perfect for low-noise circuits.
Metal film resistors (RJ) surpass carbon film resistors in several aspects: temperature and voltage coefficients, heat resistance, and noise levels. Compact and highly accurate (0.5% to 0.05%), they, however, have less stability under pulse loads and are costlier. Ideal for precision-demanding settings, they're often found at the input ends of op-amps.
Five high-precision alloy foil resistors (RJ711) come next, boasting minimal temperature coefficients and stellar stability. Their accuracy can reach a staggering 0.001%. With negligible distributed capacitance and inductance, excellent frequency characteristics, and a time constant under 1ms, they're the go-to for pulse circuits and ultra-high accuracy applications.
Synthetic solid resistors (RS) offer robust mechanical strength and impressive load capacity, including pulse loads. While they're reliable and economical, they suffer from inherent noise, larger distributed capacitance, and inductance. Their voltage and temperature stability aren't top-notch, making them suitable for general circuits but not for more demanding ones.

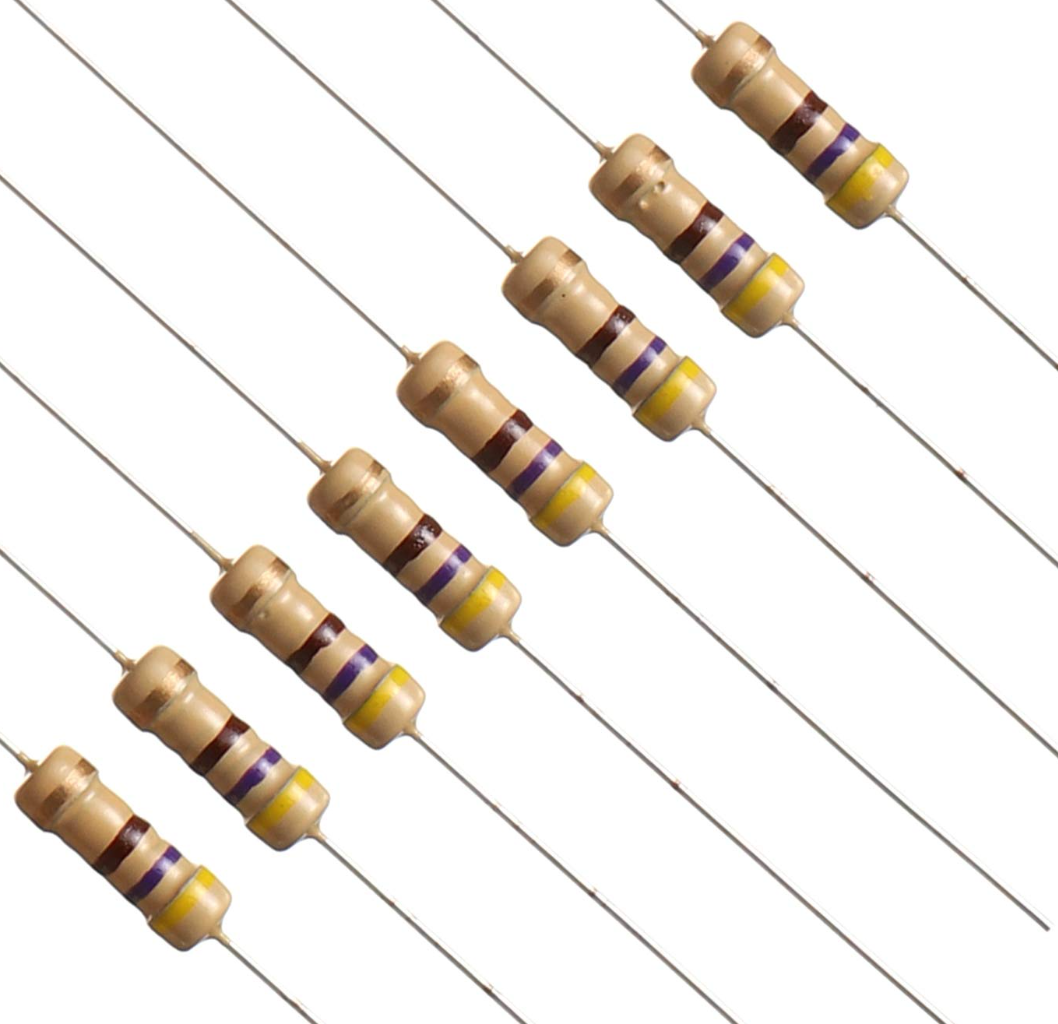

Carbon film resistors (RT) are notable for their favorable temperature coefficients, minimal negative temperature readings, stable pulse voltage, and affordability. They are widely employed due to their versatile nature.
Wirewound resistors (RX) excel in low noise, absence of current noise and nonlinearity, small temperature coefficients, and remarkable stability. With accuracies up to 0.01% and an operating temperature reaching 315°C, they're handicapped by large distribution parameters and poor high-frequency characteristics. They're ideal for low-frequency applications like voltage dividers and bleeder resistors in power circuits but falter in high-frequency environments above 2-3mhz.
Metal oxide film resistors (RY) boast superior oxidation resistance and thermal stability compared to metal film resistors. Their maximum power can hit 50kw, although their resistance range is somewhat limited (1-200k). They are economical and perform similarly to metal film resistors, making them highly cost-effective, especially for high-temperature applications, withstanding up to 240°C.
